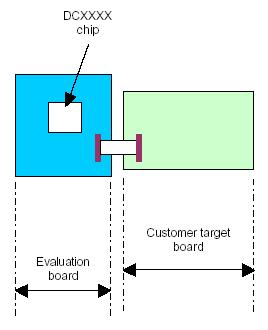

The evaluation board can be connected to customer target board by ribbon cable for development or evaluation purpose.
| Part Number | Supported Products |
|---|---|

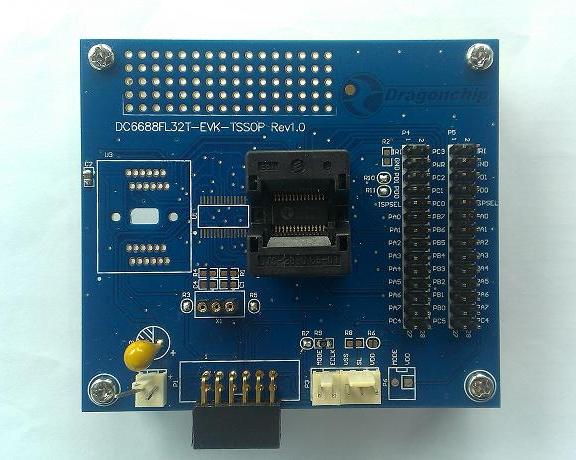

| DC6688FL32T-EVK-TSSOP | DC6688FLT in TSSOP24/28 package |

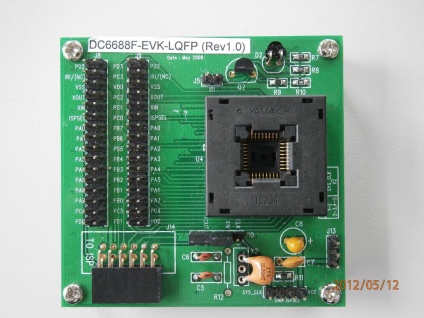

| DC6688F-EVK-LQFP | DC6688FLT in LQFP32 package |
| DC6688F-RTB | DC6688FLT in TSSOP20/28 package |
| Title | Revision | Type | Size | Date |
|---|---|---|---|---|
| User Manual for Evaluation board | 1.3 | 550K | 2013/1 | |
| User Manual for Target board | 1.0 | RAR | 590K | 2018/12 |
